Product Description

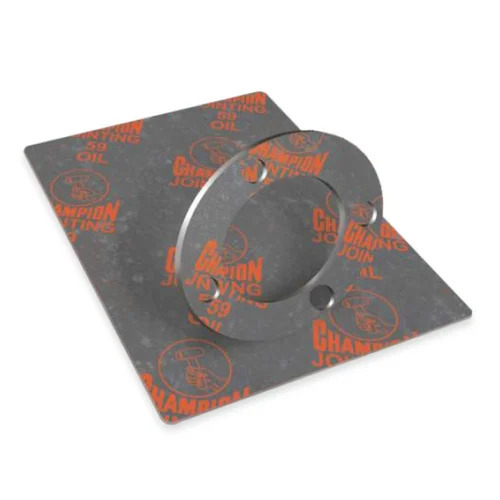

Champion Style 20 Metallic (Colour: Graphited Black)
Suitable for general purpose application where conditions of temperature and pressure are not too severe.
Max. Operating Pressure: 40kg/sq.cm.
Max. Operating Temperature: 415 °C.
| Typical Physical Properties |
| Density | IS 2712 | 1.7-2.2 |
| Tensile Strength | IS 2712 | 12 Mpa |
| Compressibility | IS 2712 | 7-12% |
| Residual Stress | IS 6210 | 20Mpa |
| Recovery | IS 2712 | >=45% |
| Water Absorption | IS 2712 | <=10% |
| Ignition Loss | IS 2712 | <=20% |
Superior Sealing PerformanceDesigned to meet stringent industrial standards, the CAF Style 20 Metallic Gasket Sheet offers high durability and exceptional sealing capability. Its premium rubber composition and metallic reinforcement ensure the sheet resists wear, deformation, and leakage, making it a reliable choice for factories and large-scale machinery operations.
Versatile Industrial ApplicationWith its robust construction, square shape, and adaptable thickness, this gasket sheet suits a wide range of industrial uses. From heavy machinery to pipelines, its resilient properties allow easy installation, stable performance, and reduced maintenance frequency, saving time and operational costs for Indian industries.
FAQs of CAF Style 20 Metallic Gasket Sheet:
Q: How is the CAF Style 20 Metallic Gasket Sheet applied in industrial settings?
A: This gasket sheet is typically installed between joint surfaces in machinery, pipelines, or equipment to provide a secure and leak-proof seal. It is positioned in square cuts as per dimensional requirements and compressed between flanges to ensure optimal performance during operation.
Q: What are the primary benefits of using a metallic rubber gasket sheet with 95% hardness?
A: The high hardness level offers superior durability, resistance to deformation, and enhanced leakage prevention. This ensures reliable and long-lasting sealing under high-pressure or high-temperature conditions common in industrial processes.
Q: When should I consider using the 4-6 mm thickness for this gasket sheet?
A: Opt for the 4-6 mm thickness when sealing applications involve higher pressure or require greater resilience against mechanical stress. Thicker sheets provide improved protection in environments subject to heavy vibrations or thermal expansion.
Q: Where can I procure CAF Style 20 Metallic Gasket Sheets in India?
A: These gasket sheets are available through authorized distributors, suppliers, and traders operating across India. Reach out to industrial supply companies or online B2B platforms to source the product with specified dimensions and material composition.
Q: What is the process of selecting the appropriate width and thickness for your application?
A: Assessment of the machinerys operating conditions, joint design, and pressure requirements will determine the proper width (10-20 mm) and thickness (4-6 mm). Consult with a supplier or technical expert to match the gasket sheet precisely to your applications needs.
Q: How does the rubber material benefit industrial gasket performance?
A: Rubber offers excellent flexibility, compressibility, and chemical resistance, making it ideal for industrial environments. It handles a variety of media, remains effective under fluctuating temperatures, and maintains a tight seal even during prolonged operations.
