Product Description

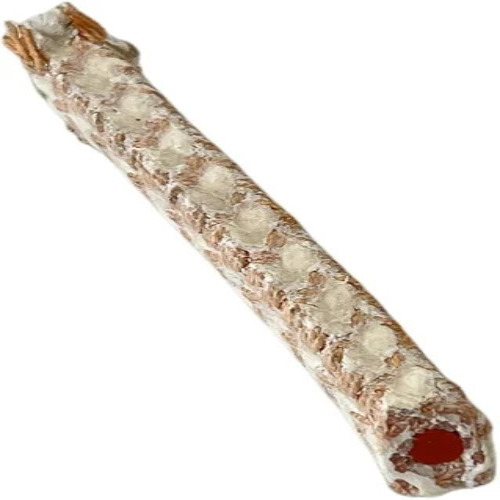

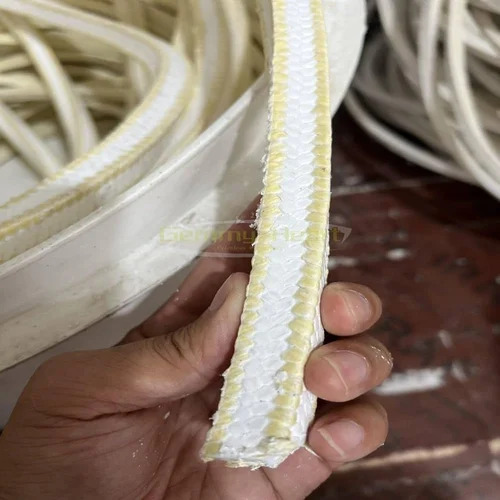

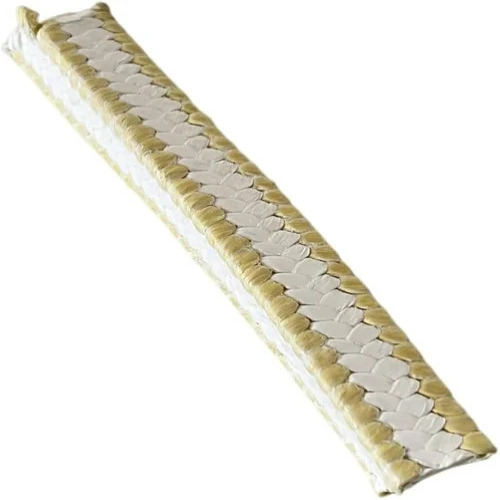

Spitmaan Hydraulic Gland Packing
This Hydraulic Packing Is Braided From Soft Natural Fiber Cotton Yarn Impregnated With High Grade Ptfe Lubricant And Additives. The Packing Has A Low Coefficient Of Friction & Is Resilient And Flexible.
Services:
Basically The Packing Is Designed For Hydraulic Applications In Low And Medium Pressure Pumps And Valves Handling Hot And Cold Water, Condensates, Air Compressors, Vacuum Pumps And In Thermal Power Plants.
- Temperature: Up to 150 Degrees C
- Pressure: Up to 80 Bar
- Ph: 4 To 10
Premium Construction and VersatilitySpitmaan Hydraulic Gland Packing is meticulously braided from durable jute fibers and impregnated with top-tier lubricants, delivering consistent sealing even in harsh environments. Its flexible design fits square or rectangular sections, and the packaging can be tailored to specified coil lengths or custom requirements. This adaptability makes it suitable for a wide range of hydraulic and general industrial uses.
Excellent Performance and Safety FeaturesEngineered for reliability, this gland packing endures pressures up to 150 bar and temperatures from -10C to +250C. It remains stable in varied chemical environments, boasting a pH compatibility of 3 to 11. Its fire-resistant characteristics and low water absorption make it ideal for critical applications where both safety and performance are paramount.
FAQ's of Spitmaan Hydraulic Gland Packing:
Q: How should Spitmaan Hydraulic Gland Packing be installed in a stuffing box?
A: Ensure the stuffing box and shaft are clean before installation. Cut the packing into required lengths, fitting them sequentially and staggering the joints for optimal sealing. Compress the packing evenly and adjust the gland follower as needed.
Q: What benefits does the jute construction offer for hydraulic gland packing?
A: Jute provides resilience, flexibility, and low water absorption, while the impregnated lubricants reduce friction and enhance the packing's service life, especially under demanding hydraulic conditions.
Q: When is it suitable to use Spitmaan Hydraulic Gland Packing?
A: This gland packing is ideal for use when sealing hydraulic machinery that operates within a pressure range up to 150 bar, temperature spectrum from -10C to +250C, and where low water absorption and fire resistance are critical.
Q: Where can this gland packing be used?
A: It is suitable for a broad array of industrial sectors in India, including water treatment facilities, chemical processing plants, and any application requiring reliable packing for hydraulic machinery.
Q: What is the process for selecting the appropriate size and length?
A: Determine the dimensions of the stuffing box (length, width, cavity) and refer to the recommended widths and thicknesses (3-5 mm width, 5-10 mm thickness). Coils or custom lengths can be supplied per specific requirements.
Q: How does the fire resistance of this gland packing benefit operational safety?
A: The fire-resistant properties help prevent degradation and ensure sealing integrity during unexpected high-heat events, contributing to safer working conditions and protecting critical equipment.
