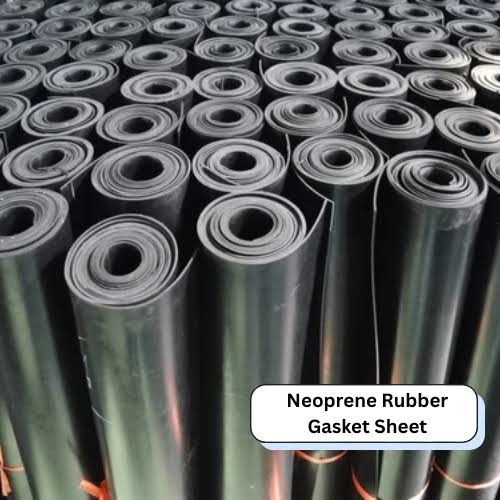

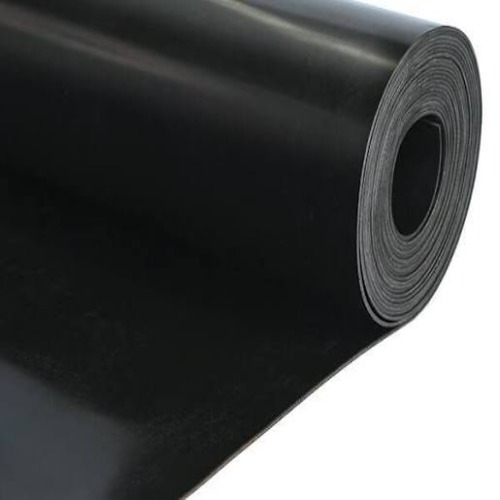

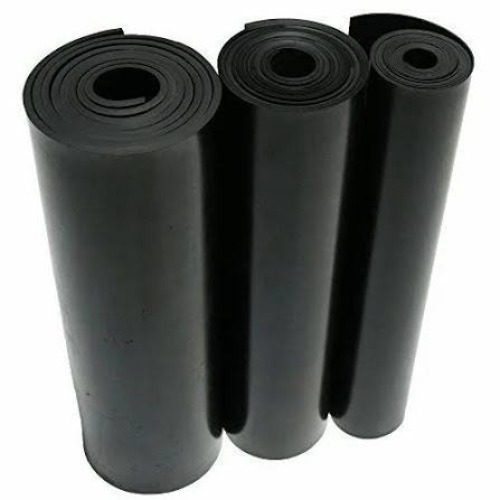

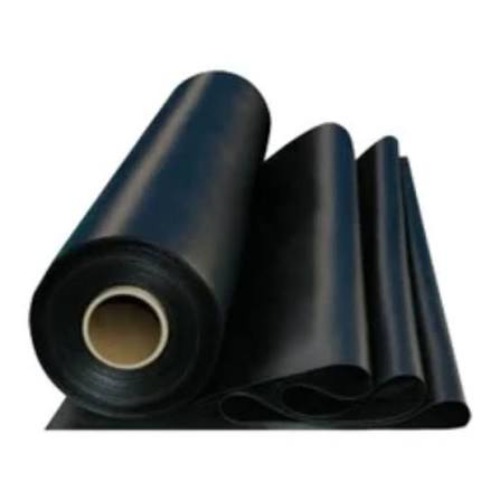

Neoprene Rubber Sheet

Name: Neoprene Rubber Sheet
Brand: EXCEL TRADING CORPORATION
Price: 450.0 INR
Availability: InStock

450.0 INR/Kilograms

Get a Price/Quote

Product Details:

Compression Ratio 20 30%
Nitrogen Content (%) N/A
Flame Resistance Level Good flame resistance; self-extinguishing (grade dependent)
Resistance level High resistance to oils, grease, weather, ozone, and aging
Color Black
Volatile Matter (%) N/A
Tolerance 0.2 mm Millimeter (mm)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Neoprene Rubber Sheet Price And Quantity

Price 450.0 INR/Kilograms
Minimum Order Quantity 1 Kilograms

Neoprene Rubber Sheet Product Specifications

Hardness 60 5 Shore A
Tolerance 0.2 mm Millimeter (mm)
Diameter N/A Meter (m)
Density 1.40 1.60 g/cm Gram per cubic centimeter(g/cm3)
Feature Oil resistant, weather resistant, ozone resistant, abrasion resistant, flexible, durable
Part Type Gasket Sheet
Tensile Strength 10 15 MPa Megapascals (MPa )
Size 1000 1000 mm Sheet
Water Absorption Very Low
Thickness 1 mm, 2 mm, 3 mm, 5 mm, 6 mm, 10 mm Millimeter (mm)
Compression Ratio 20 30%
Flame Resistance Level Good flame resistance; self-extinguishing (grade dependent)
Nitrogen Content (%) N/A
Resistance level High resistance to oils, grease, weather, ozone, and aging
Color Black
Volatile Matter (%) N/A
Components Neoprene Elastomer
Thermal Conductivity Approximately 0.23 W/m K Watt/Meter/K (w/(m.k)
Rubber Type Neoprene (CR Chloroprene Rubber)
Natural Rubber No
Material Neoprene Rubber (Polychloroprene)
Style Plain Sheet
Product Type Neoprene Rubber Gasket Sheet
Weight Depends on thickness Kilograms (kg)
Usage & Applications Gasket making, flange sealing, industrial machinery, electrical panels, HVAC systems, pumps, compressors, automotive and transformer applications
Surface Finish Smooth / Matte
Length 1 m (or roll length as applicable) Meter (m)
Temperature Resistance -20 C to +100 C (up to +120 C for special grades)
Width 1.2 Meter (m)
Ash % N/A

Neoprene Rubber Sheet Trade Information

Delivery Time 1 Days

Product Description

Neoprene Rubber Gasket Sheet is a high-performance synthetic rubber sheet manufactured from chloroprene rubber (CR), designed for reliable sealing and gasketing applications. It offers excellent resistance to oils, greases, ozone, weathering, moisture, and moderate chemicals while maintaining good flexibility and mechanical strength. Its durability and resistance to aging make it ideal for long-term use in industrial and electrical applications.

The sheet provides excellent compression recovery, ensuring leak-proof sealing in static applications. It is widely used in transformers, electrical panels, pumps, compressors, flanges, HVAC systems, automotive components, and general industrial machinery where resistance to environmental exposure and moderate oil contact is required.

Key Features

Excellent resistance to oils, greases, and petroleum-based fluids
Superior weather, ozone, and UV resistance
Good mechanical strength and abrasion resistance
Flexible with excellent compression set recovery
Resistant to moisture and aging
Good flame-resistant properties
Easy to cut, fabricate, and install
Available in various thicknesses and sheet sizes

Applications

Industrial gasket and seal manufacturing
Transformer and electrical panel gasketing
Pump, valve, and pipeline flange sealing
HVAC duct and equipment sealing
Compressor and machinery gaskets
Automotive and marine sealing applications
General engineering and maintenance applications

Available Specifications

Material: Neoprene Rubber (CR Chloroprene Rubber)
Color: Black
Hardness: 60 5 Shore A
Thickness: 1 mm to 10 mm
Temperature Range: -20C to +100C
Standard Sheet Size: 1000 1000 mm (custom sizes available)

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Rubber Products' category

Vulcanized Fibre Sheet Price : 50.0 INR/Piece Minimum Order Quantity : 10 Surface Finish : Smooth, semigloss Usage & Applications : Electrical insulation, gasket manufacturing, automotive, machinery, switchboard panels, washers, and templates. Weight : Varies by size and thickness (approx. 1.11.4 g/cm3 density) Grams (g) Ash % : <2% Width : Customizable; standard up to 1000 mm. Meter (m) Temperature Resistance : 40C to +120C Length : Customizable; standard up to 2000 mm Meter (m) Natural Rubber : Yes Thermal Conductivity : 0.2 W/mK Watt/Meter/K (w/(m.k) Rubber Type : NA Components : Pure cellulose, no resins or binders Product Type : Vulcanized Fibre Sheet Material : Cellulosic fibers (cotton/wood pulpbased) Style : Flat sheet Nitrogen Content (%) : 0.20.35% Flame Resistance Level : Selfextinguishing (UL 94 HB) Compression Ratio : Up to 8% (varies with thickness) Volatile Matter (%) : <5% Color : Natural Brown, Red, Black, Grey Resistance level : Good resistance to oil, grease, and organic solvents Density : 1.4 Gram per cubic centimeter(g/cm3) Tolerance : 0.05 mm Millimeter (mm) Hardness : 97% Thickness : 510 Millimeter (mm) Water Absorption : <8% (after 24 hours water immersion) Size : Available in sheets or rolls; standard sheet size 1000 mm x 2000 mm. Feature : Rubber Packing Tensile Strength : 80120 MPa (depending on thickness) Megapascals (MPa ) Part Type : Sheet Diameter : N/A (applicable for rolls/rounds rather than sheets) Millimeter (mm)

Send Inquiry

Rubber O-Ring Price : 30.0 INR/Piece Minimum Order Quantity : 100 Surface Finish : Smooth Usage & Applications : Sealing, gasketing, hydraulic and pneumatic systems, automotive, plumbing, industrial machinery Weight : Varies by size Grams (g) Ash % : 2% Width : Varies as per size specification (commonly 1 mm to 10 mm) Meter (m) Temperature Resistance : 40C to +120C (depends on material type) Length : Continuous (as per ring size) Meter (m) Natural Rubber : Yes Thermal Conductivity : Low Watt/Meter/K (w/(m.k) Rubber Type : Nitrile, EPDM, Silicone, Viton Components : Rubber polymer, fillers, additives Product Type : Rubber O Ring Material : Nitrile Rubber (NBR), EPDM, Viton, Silicone rubber (as selected) Style : Round/Circular Cross Section Nitrogen Content (%) : 0.5% Flame Resistance Level : Standard (optional flameresistant grades available) Compression Ratio : 25% optimum Volatile Matter (%) : 2.5% Color : Black Resistance level : High chemical and oil resistance Density : 1.5 Gram per cubic centimeter(g/cm3) Tolerance : 0.2 mm Millimeter (mm) Hardness : 96% Thickness : 510 Millimeter (mm) Water Absorption : < 1% Size : Customizable; standard sizes available (ID CS) Feature : Rubber Packing Tensile Strength : 1020 MPa Megapascals (MPa ) Part Type : Sealing Ring Diameter : Inner Diameter (ID): 3 mm 400 mm (customizable) Millimeter (mm)

Send Inquiry

Silicone Square Cord Price : 125.0 INR/Kilograms Minimum Order Quantity : 100 Surface Finish : Smooth, extruded Usage & Applications : Gaskets, sealing, insulation in electrical, automotive, and foodgrade industries Weight : Varies by dimension and length Grams (g) Ash % : <1% Width : Customizable (commonly 2 mm 50 mm) Millimeter (mm) Temperature Resistance : 60C to +230C Length : Custom lengths; standard rolls of 10 m, 20 m Millimeter (mm) Natural Rubber : Yes Thermal Conductivity : ~0.2 W/mK Watt/Meter/K (w/(m.k) Rubber Type : Silicone Components : Single extruded piece Product Type : Silicone Square Cord Material : Silicone Rubber Style : Extruded solid square cord Nitrogen Content (%) : 0% Flame Resistance Level : Selfextinguishing, UL94V0 upon request Compression Ratio : Up to 30% Volatile Matter (%) : <1% Color : Red, white, transparent, blue or as per requirement Resistance level : Excellent to heat, weathering, ozone, and chemicals Density : 1.28 Gram per cubic centimeter(g/cm3) Tolerance : 0.2 mm Millimeter (mm) Hardness : 95% Thickness : 510 Millimeter (mm) Water Absorption : <0.1% Size : Square profile, sizes from 2 mm onwards Feature : Durable Tensile Strength : 7 MPa Megapascals (MPa ) Part Type : Cord/Strip Diameter : 2 mm to 50 mm (for square side length) Millimeter (mm)

Send Inquiry

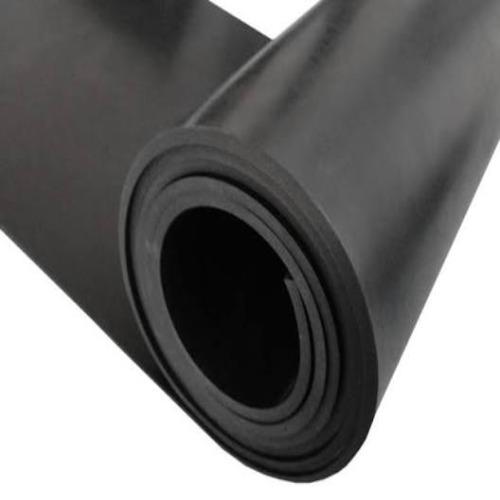

EPDM Rubber Gasket Sheet Price : 380.0 INR/Kilograms Minimum Order Quantity : 1 Surface Finish : Smooth Finish Usage & Applications : Pipe flanges, pumps, valves, HVAC systems, water treatment plants, steam lines, chemical industries, automotive sealing Weight : Depends on thickness & size Kilograms (kg) Ash % : N/A Width : 1.2 Meter (Standard) Meter (m) Temperature Resistance : 40 C to +120 C (up to +150 C for special grades) Length : 10 Meter Roll (Standard) Meter (m) Natural Rubber : No Thermal Conductivity : Approx. 0.25 W/m K Watt/Meter/K (w/(m.k) Rubber Type : EPDM Rubber Components : EPDM Polymer with reinforcing fillers and additives Product Type : EPDM Rubber Gasket Sheet Material : EPDM (Ethylene Propylene Diene Monomer) Rubber Style : Plain / Smooth Sheet Nitrogen Content (%) : N/A Flame Resistance Level : Good Compression Ratio : Low Compression Set / Good Recovery Volatile Matter (%) : N/A Color : Black Resistance level : Excellent Density : 1.10 1.30 g/cm Gram per cubic meter (g/m3) Tolerance : As per ASTM Standards Meter Hardness : 60 70 Shore A Thickness : 1 mm to 25 mm Millimeter (mm) Water Absorption : Very Low Size : Custom sizes available Feature : Weather resistant, ozone resistant, UV resistant, water & steam resistant, durable Tensile Strength : 8 12 MPa Megapascals (MPa ) Part Type : Gasket Sheet / Industrial Gasket Diameter : Not Applicable Meter (m)
