Product Description

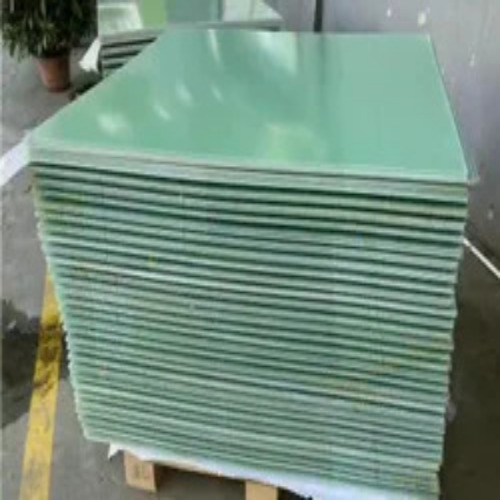

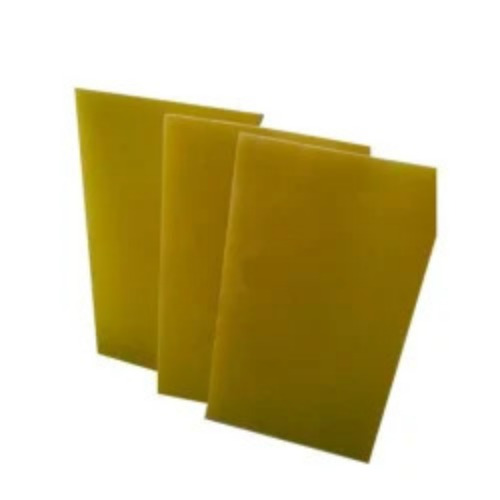

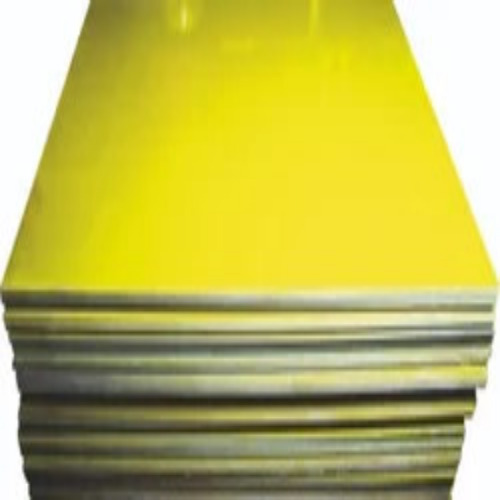

Fiber Glass Epoxy Sheet
These sheets are very strong and lightweight. These are manufactured by making use of quality phenolic glass cloth. Latest tools and machines are used to manufacture these sheets. The Fiber Glass Epoxy Sheet is widely demanded for making insulating parts for electric equipment in adverse conditions.
Exceptional Electrical InsulationFiber Glass Epoxy Sheets are engineered for superior insulation, offering voltage withstand capabilities between 18-30 kV/mm and dielectric strength of 14 kV/mm. These properties make the sheets ideal for use in electrical enclosures, circuit boards, and control panels, especially in demanding industrial environments.
Durable Construction and Flexible ApplicationsManufactured using E-glass fiber and epoxy resin by compression moulding, these sheets display high flexural strength (350 MPa) and robust moisture resistance. Available in green and yellow, with a glossy or matte finish, the sheets can be custom-sized for multiple applications such as packing, switchgear, or transformers.
Reliable Performance in Extreme ConditionsTested for temperature ranges from -40C to +155C and with a low thermal conductivity (0.35 W/mK), these fiber glass epoxy sheets provide stable performance in environments subject to temperature fluctuations. Their flame retardant UL94-V0 rating further ensures safety in electrical installations.
FAQs of Fiber Glass Epoxy Sheet:
Q: How is the fiber glass epoxy sheet used in electrical applications?
A: Fiber glass epoxy sheets are commonly utilized for insulation in electrical enclosures, control panels, switchgear, and circuit boards due to their exceptional dielectric and flexural strength, coupled with UL94-V0 flame retardant properties.
Q: What does the UL94-V0 flame retardant rating mean for safety?
A: UL94-V0 indicates that the fiber glass epoxy sheet self-extinguishes within 10 seconds after the flame is removed, greatly reducing the risk of fire and ensuring suitability for high-voltage and sensitive environments.
Q: Where can I use these sheets apart from electrical insulation?
A: Aside from electrical uses, these sheets are effective for packing, providing moisture resistance for items requiring safeguarding. Their durable construction also makes them appropriate for transformer insulation and industrial machinery housing.
Q: When should I choose matte or glossy finishes on these sheets?
A: The choice between glossy and matte finish depends on the applications aesthetic and functional requirements. Matte may be preferable in settings with glare concerns, while glossy is ideal for environments requiring easy cleaning or where appearance is important.
Q: What are the benefits of using E-glass fiber in epoxy sheets?
A: E-glass fiber enhances mechanical strength, flexibility, and resistance to moisture and chemicals, making the sheets highly durable and reliable for both packing and electrical insulation applications.
Q: How does the water absorption feature affect sheet performance?
A: With water absorption 0.3%, these sheets have high moisture resistance, ensuring stable performance and longevity in humid or damp environmentsprotecting both electrical components and packed goods.
