Product Description
| Color |
Yellow |
| Usage/Application |
Industrial |
| Brand |
Champion |
| Density |
1.8 g/cm |
| Tensile Strength |
Tensile Strength |
| Model Number |
AF154 |
| Max. Operating Pressure |
150 bar |
| Compressibility |
7-11% |
| Residual Stress |
25 Mpa |
| Water Absorpation |
Less then or Equal 5% |
| Ignition Loss |
Less then or Equal 35% |

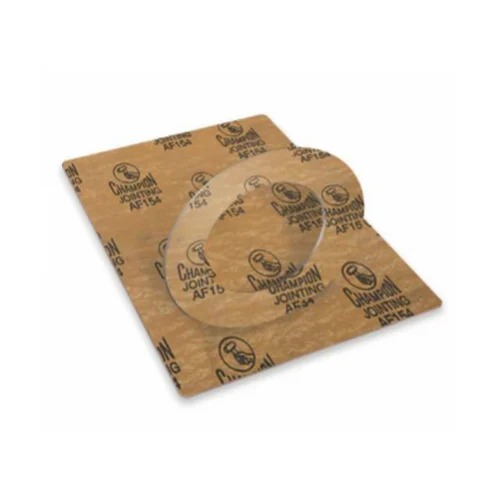

Description:A superior performance compressed jointing sheet incorporating a blend of special heat resisting Aramid fibres with a high quality nitrile elastomer binder.Service Conditions:Suitable for use with Oils, Solvents, Gases, Steam, Dilute Acids and alkalies. (High Service Conditions)Superior Temperature and Pressure ResistanceChampion AF154 Super Fiber Jointing Sheets provide robust sealing capabilities, functioning reliably in environments with temperatures up to 400C and pressures reaching 5 MPa. These properties make them suitable for demanding industrial uses where standard jointing sheets might fail.
Versatile and Customizable DesignManufactured as rectangular sheets and available in thicknesses from 1.0 mm to 5.0 mm, these sheets can be tailored to various dimensions according to user requirements. This flexibility allows businesses to address unique sealing challenges across a wide range of machinery and equipment.
Compliant with International StandardsMeeting both DIN and ASTM standards, Champion AF154 Super Fiber Jointing Sheets uphold strict industrial quality requirements. This ensures users receive reliable, safe, and high-performing materials, making them a trusted choice for projects where compliance is essential.
FAQ's of Champion AF154 Super Fiber Jointing Sheet:
Q: How is the Champion AF154 Super Fiber Jointing Sheet used in industrial sealing applications?
A: The sheet is cut to the required size and shape, then installed as a gasket or seal between flanges or surfaces to prevent leakage of gases and liquids in pipelines, valves, and machinery.
Q: What are the main benefits of using Champion AF154 sheets over conventional jointing materials?
A: Champion AF154 offers enhanced temperature and pressure resistance, superior durability, and compliance with international standards, making it ideal for harsh industrial environments where traditional materials may degrade.
Q: When should I choose a thickness between 1.0 mm and 5.0 mm for my application?
A: The selection depends on the surface condition, pressure to be sealed, and flange design; thicker sheets are used for irregular surfaces or higher pressures, while thinner sheets are suitable for smoother, less demanding joints.
Q: Where can I source Champion AF154 Super Fiber Jointing Sheets in India?
A: These sheets are available through authorized distributors, suppliers, and traders across India, ensuring convenient procurement for industrial clients nationwide.
Q: What standards do Champion AF154 sheets comply with, and why does this matter?
A: These sheets conform to DIN and ASTM standards, ensuring they meet widely recognized quality, performance, and safety criteria required in critical industrial applications.
Q: How do I customize the dimensions of the sheet for my application?
A: Provide precise measurements or patterns to the supplier or distributor; the manufacturer will then customize the sheet dimensions to fit your specific sealing requirements.
