Product Description

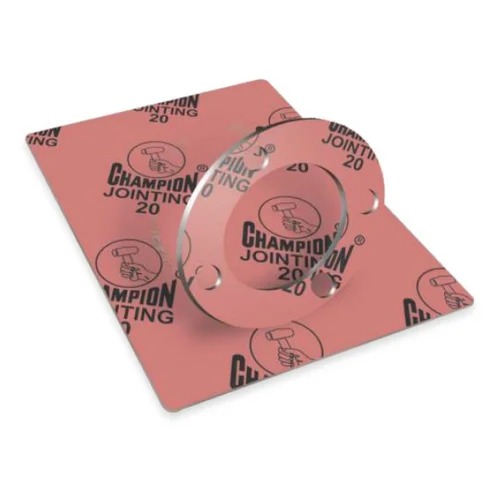

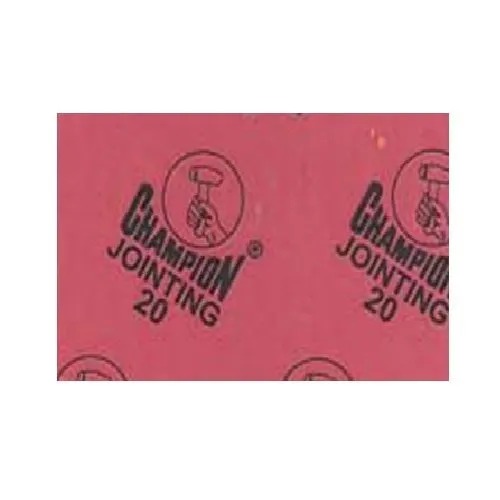

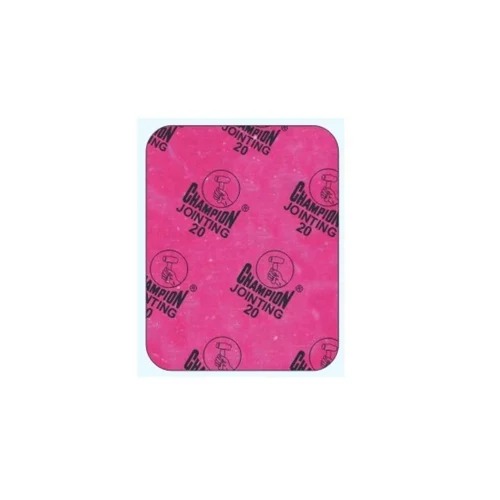

Champion Style 20 Steam (Colour: Red or Graphited)
Suitable for light industrial applications.
Media: Water, steam, inner gases and non-aggressive media.
Max. Operating Pressure: 35kg/sq.cm.
Max. Operating Temperature: 380 °C.
| Typical Physical Properties |
| Density | IS 2712 | 1.7-2.2 |
| Tensile Strength | IS 2712 | 9.5 Mpa |
| Compressibility | IS 2712 | 7.5-12% |
| Residual Stress | IS 6210 | 20Mpa |
| Recovery | IS 2712 | >=42.5% |
| Water Absorption | IS 2712 | <=10% |
| Ignition Loss | IS 2712 | <=20% |
Precision Engineered for Industrial PerformanceCAF Style 20 Steam Gasket Sheets are designed with premium-grade rubber to deliver excellent durability and resistance against high-pressure steam environments. Their consistent hardness and precise dimensions ensure reliable performance in industrial settings, minimizing maintenance and downtime.
Versatile Sizing and Robust ConstructionWith widths ranging from 10-20 mm and thicknesses between 4-6 mm, these square-shaped gasket sheets are tailored for a variety of installation needs. Their robust construction facilitates a secure seal across different machinery and pipeline configurations commonly found in industrial applications.
FAQ's of CAF Style 20 Steam Gasket Sheet:
Q: How is the CAF Style 20 Steam Gasket Sheet used in industrial applications?
A: The gasket sheet is placed between jointed surfaces such as flanges in pipelines and machinery, where it acts as a sealing barrier. This helps to prevent steam or fluid leaks and ensures the system operates efficiently under high pressure and temperature conditions.
Q: What makes the hardness of 98% significant for this gasket sheet?
A: A hardness of 98% indicates high resistance to compression and deformation, which is essential for maintaining a secure seal in demanding industrial environments. This property ensures the gasket sheet maintains its integrity and performance over extended use.
Q: When should you consider replacing the gasket sheets?
A: Replacement is recommended when there are visible signs of wear such as cracks, deformation, or loss of sealing efficiency. Regular inspections during routine maintenance can help detect these issues early and ensure continuous system safety.
Q: Where can I purchase the CAF Style 20 Steam Gasket Sheet in India?
A: These gasket sheets are available through authorized distributors, suppliers, and traders found across industrial markets in India. You can contact local dealers or specialized industrial supply companies for rapid procurement.
Q: What is the installation process for these gasket sheets?
A: Installation involves cleaning the flange surfaces, cutting the gasket sheet to the required dimensions (if necessary), and securing it between the connecting surfaces. It is important to align the gasket properly and tighten bolts evenly to ensure a leak-proof seal.
Q: What are the main benefits of using this steam gasket sheet?
A: The primary benefits include excellent sealing performance, extended durability under high-pressure steam conditions, and reduced risk of leaks. This contributes to increased operational safety and helps lower maintenance costs in industrial systems.
