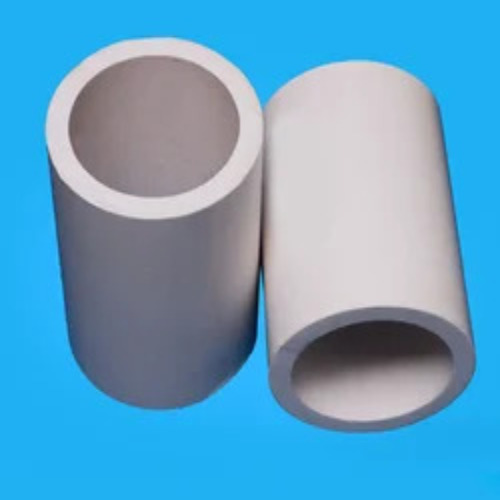

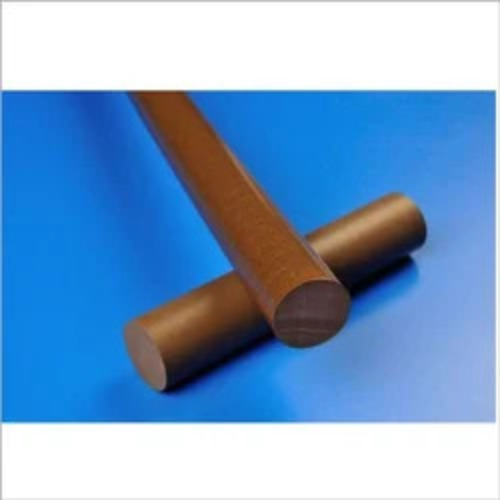

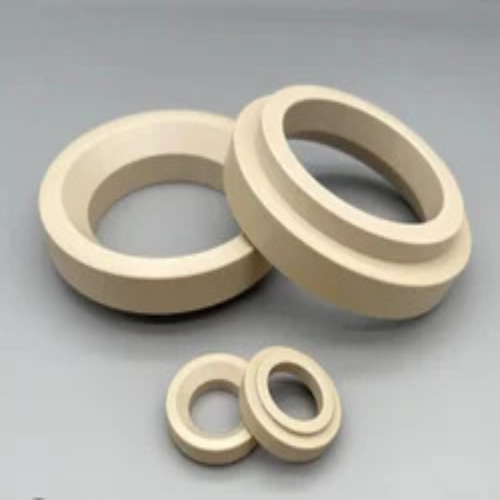

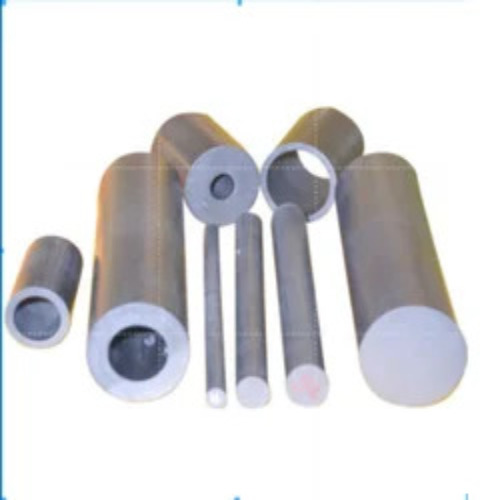

PTFE Filled Glass

Product Description

Glass Filled PTFE
PTFE is reinforced with glass fibres, the percentage varying between 5 and 40%. The added glass fibre improves the wear properties and to a minor degree, also the deformation strength under load while leaving substantially unchanged the electrical and chemical characteristics. Glass itself, has a rather poor resistance against alkalis and is easily attacked by hydrofluoric acid. The coefficient of friction is slightly increased and for this reason, graphite is sometimes added to compensate this side effect.

 Specifications:

• From .010 to 2.5 thick
• From wide to 48 wide
• Cylinders to 7 OD and 12 long
• Rod and Tube
• Material Type; reforcement filler plus PTFE: 25% short glass fibre; 85% virgin PTFE
• Max. PV (psi-fpm); Mpa-m/s: 10,000; 0.35
• Operating Temp.: minus 350F - plus 500F
• Attribute/Properties: Wear resistant, improved hardness, lower thermal expansion, lower deformation under load
• Colours:
  • PTFE can be color coded
  • Available colors are red, orange, green, blue, turquoise, yellow, gray. Other colors may be available on request
  • Pigments do not materially change the properties of PTFE
  • Ideal for applications requiring visible differentiation
  • Pigments can be combined with other fillers
