Product Description

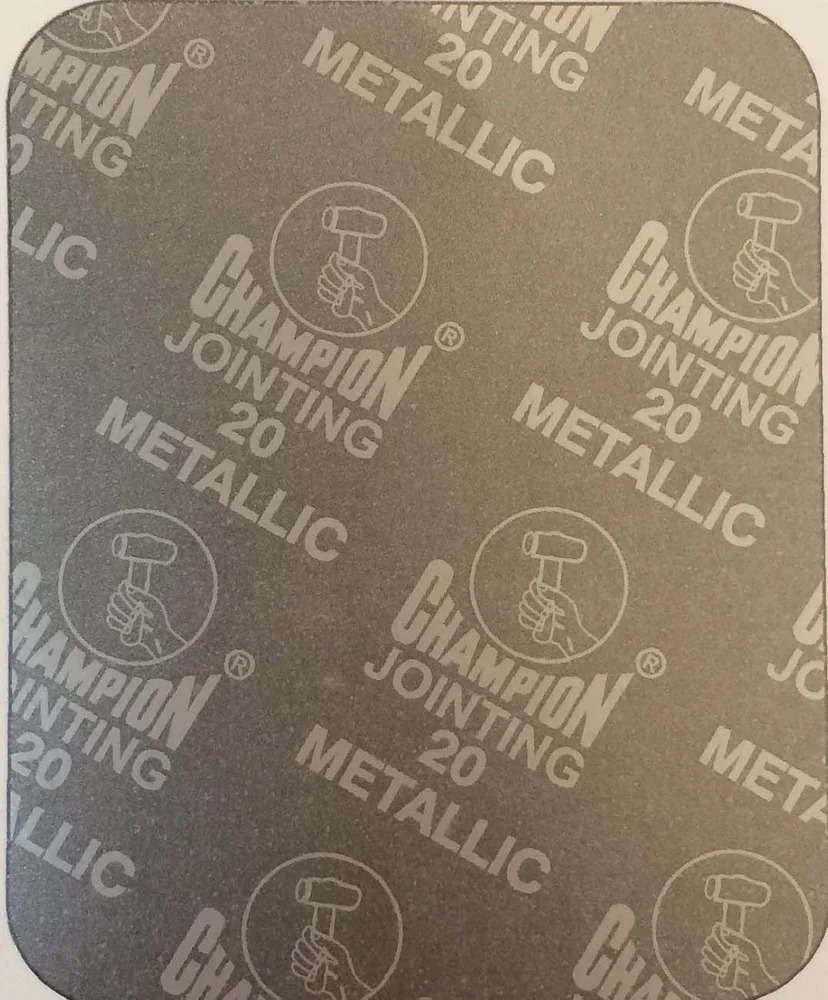

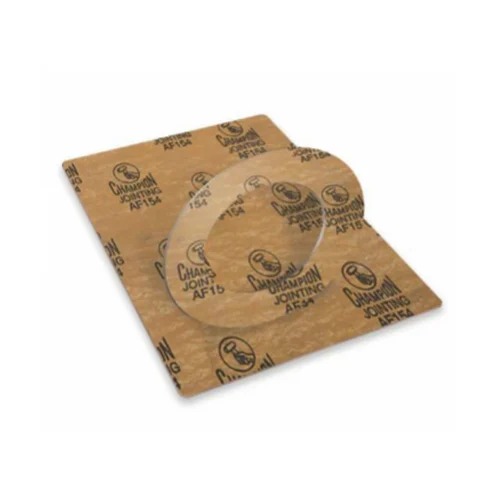

Champion AF 154 Metallic Wire Fiber Jointing Sheet
|
Model Name/Number
|
AF 154
|
|
Usage/Application
|
Industrial
|
|
Brand
|
Champion
|
|
Density
|
2g/cm
|
|
Tensile Strength
|
15 - 17 Mpa
|
|
Compressibility
|
7-11%
|
|
Residual Stress
|
25 Mpa
|
|
Gas Permeability
|
<0.1 cc/Min
|
|
Recovery
|
Greater then or Equal 55%
|
|
Water Absorpation
|
Less then or Equal 5%
|
|
Ignition Loss
|
Less then or Equal 35%
|
A superior performance compressed jointing sheet incorporating a blend of special heat resisting Aramid fibres with a high quality nitrile elastomer binder.
Service Conditions:Suitable for use with Oils, Solvents, Gases, Steam, Dilute Acids and alkalies. (High Service Conditions).
Request
Callback
Superior Performance in High-Temperature EnvironmentsThe Champion AF 154 Sheet stands out due to its ability to withstand extreme temperatures up to 450C, making it ideal for industrial applications where heat resistance is critical. Its construction with metallic wire fiber reinforcement ensures remarkable integrity and long-lasting sealing even under fluctuating thermal conditions, minimizing the risk of leakage or failure.
Versatile Sizing for Custom Industrial NeedsOffering customizable standard sheet sizes and thicknesses ranging from 0.5mm to 5mm, this jointing sheet adapts to various equipment and installation requirements. Its flexibility allows manufacturers and maintenance teams to select dimensions that best fit their sealing projects, leading to greater efficiency and operational reliability.
FAQ's of Champion AF 154 Metallic Wire Fiber Jointing Sheet:
Q: How is Champion AF 154 Metallic Wire Fiber Jointing Sheet applied in industrial sealing?
A: This sheet is used to create reliable seals in flanges, joints, and equipment operating under high pressure and temperature. It is typically cut to the required size and fitted to the sealing surface to prevent leakage of fluids or gases.
Q: What benefits does metallic wire fiber reinforcement offer?
A: The embedded metallic wire fibers provide additional strength and durability, enhancing resistance to pressure (up to 100 bar) and maintaining shape and seal integrity during thermal cycles, which is vital for reliable industrial performance.
Q: When should I choose a sheet thickness between 0.5mm and 5mm?
A: Sheet thickness selection depends on the application's pressure, temperature, and surface conditions. Thicker sheets are generally chosen for surfaces with irregularities or higher pressure demands, while thinner sheets suit smooth, low-pressure interfaces.
Q: Where are these jointing sheets typically used?
A: They find application in refineries, chemical plants, power generation units, and other industrial environments throughout India that require high-performance gaskets for machinery and piping systems.
Q: What is the process of sourcing Champion AF 154 Jointing Sheets in India?
A: As a widely distributed product, these sheets can be procured through authorized distributors, suppliers, or traders specializing in industrial sealing materials across major cities and industrial hubs in India.
Q: What makes this jointing sheet suitable for high-temperature and high-pressure applications?
A: Its compressed construction with metallic wire reinforcement ensures excellent temperature and pressure resistance, sustaining functionality up to 450C and 100 bar, making it reliable for demanding sealing tasks.
Q: How does using Champion AF 154 benefit industrial operations?
A: Utilizing this jointing sheet minimizes the risk of leaks, reduces maintenance downtime, and enhances operational safety, ultimately contributing to efficient and trouble-free industrial processes.
