Product Description
| Color | GRAPHITED BLACK |
| Usage/Application | Industrial |
| Brand | Champion |
| Model Number | 54 SUPER METALLIC |
| Max. Temperature | 600 Degree C |
| Max. Pressure | 160 Kg/sq.cm |

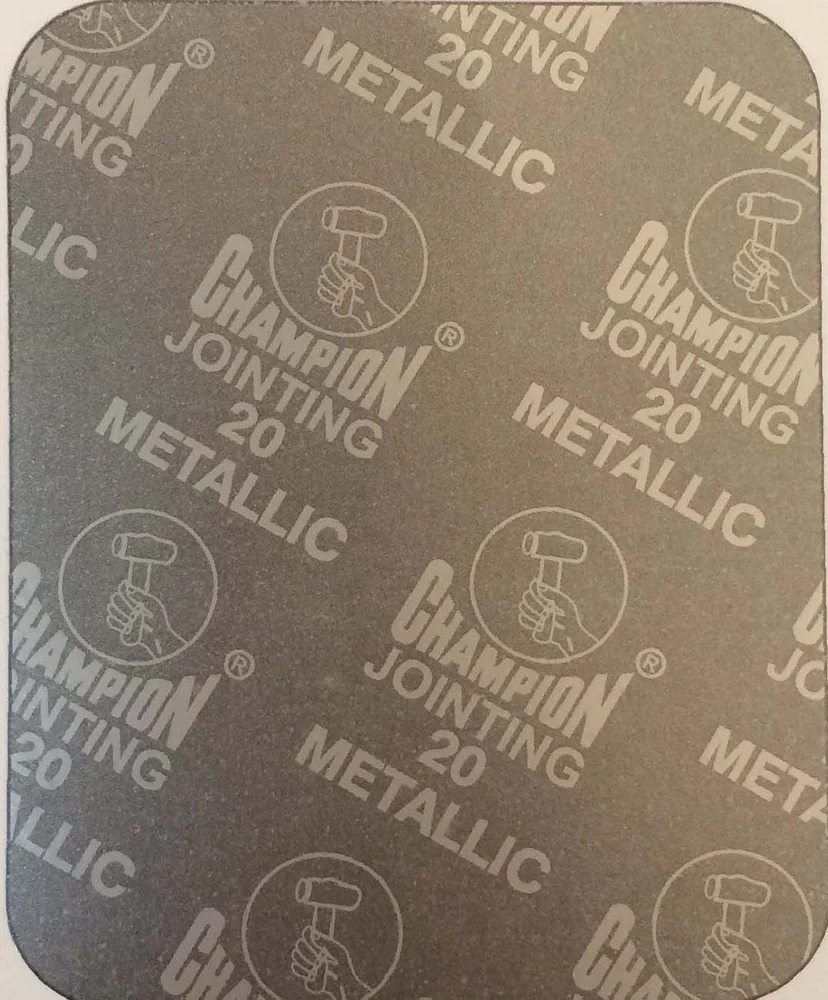

Description:A Compressed Asbestos Fibre Jointing Graphited embedded with a strong reinforcement of steel wire gauze, THE SUPER METALLIC gasket sheet is superior in performance over other forms of Jointing Sheets where severe physical conditions of High Pressure and temperature have to be resisted. It is effectively used under rapidly changing operating conditions of pressure, where vibrations are experienced, where the flange of the gasket joint is narrow, in diesel exhaust manifold, cylinder head gaskets, internal combustion engines andAir Compressors.Superior Construction for Maximum DurabilityThe Champion 54 Super Metallic sheets feature a fine wire mesh reinforcement, significantly enhancing structural integrity for challenging applications. The metallic surface on both sides not only ensures reliable performance but also prolongs the products operational lifespan, even under fluctuating mechanical and chemical stresses.
Reliable Versatility for Industrial SealingThese jointing sheets and gaskets are engineered to handle a wide range of mediums, including steam, gases, oils, water, alkalis, solvents, and chemicals. Their outstanding temperature and pressure resistance enable usage in various industrial sectors, from chemical processing to steam systems, offering consistent performance and dependable sealing.
Customizable Sizes and Thicknesses for Every NeedChampion 54 Super Metallic sheets are available in standard sizes of 1500 mm x 1500 mm and 2000 mm x 2000 mm, with thickness options ranging from 0.4 mm to 5.0 mm. Custom sizes can also be manufactured, ensuring an optimal fit for unique requirements and system configurations.
FAQs of Champion 54 Super Metallic Compressed Asbestos Fiber Jointing Sheet And Gasket:
Q: How does the wire mesh reinforcement enhance the strength of Champion 54 Super Metallic jointing sheets?
A: The fine wire mesh core within the sheets provides added structural strength and stability. This reinforcement reduces the likelihood of tearing or deforming under mechanical stress, making the coverings ideal for high-pressure and high-temperature environments.
Q: What are the primary industrial applications for this gasket and jointing sheet?
A: Champion 54 Super Metallic sheets are primarily used for sealing in pipelines, flanges, and joints in industries dealing with steam, gases, water, alkalis, oils, solvents, and chemicals. Their durability allows them to be employed in power plants, refineries, and chemical processing units.
Q: When should I consider using this product over other gasket materials?
A: Opt for these sheets when you require superior temperature resistance up to 450C, high pressure tolerance (up to 130 bar), and chemical compatibility. Their exceptional mechanical properties and low leachable chloride content make them suitable for sensitive or hazardous operations.
Q: Where can Champion 54 Super Metallic sheets be sourced in India?
A: These sheets are widely available through authorized distributors, suppliers, and traders in India. You may also contact manufacturing representatives for bulk orders or custom sizing according to your specific needs.
Q: What is the recommended process for installing these jointing sheets or gaskets?
A: Installation involves accurately cutting the sheet to the desired dimensions, placing it evenly between flanges or surfaces, and then tightening bolts to the recommended torque to achieve optimal compressibility and sealing performance.
Q: How do these sheets benefit industrial operations?
A: The sheets offer reliable sealing, extended operational lifespan, and resistance to extreme temperatures and pressures. This translates to reduced maintenance, fewer shutdowns, and enhanced safety for industrial equipment and processes.
